| 起源の場所: | 広東省、中国 |
|---|---|
| ブランド名: | UNIMETRO |
| 証明: | CE,ISO |
| モデル番号: | 馬力シリーズ |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 木製ケース+真空パッケージ |
| 受渡し時間: | 15〜20日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 月5セット |
| モデル: | HEシリーズ | 製品名: | 全自動画像測定器（固定ガントリータイプ） - HP442 |
|---|---|---|---|
| 再現性: | 1.5um | 正確さ: | 1.6+L/200um |
| 線形スケール解像度: | 0.5um (オプションで0.1um) | 測定モード: | 全自動 |
| サポート: | OEM,ODM,カスタマイズ | アプリケーション シーナリー: | 研究室/産業 |
| 保証: | 12ヶ月 | 重量(kg): | 560 |
| 怒りを測る: | 40/400/200 | ||
| ハイライト: | HP Series VMM 3D vision machine,Non-contact measurement 3C inspection,Precision inspection vision measurement machine |
||
HP: High-Precision (High Precision)

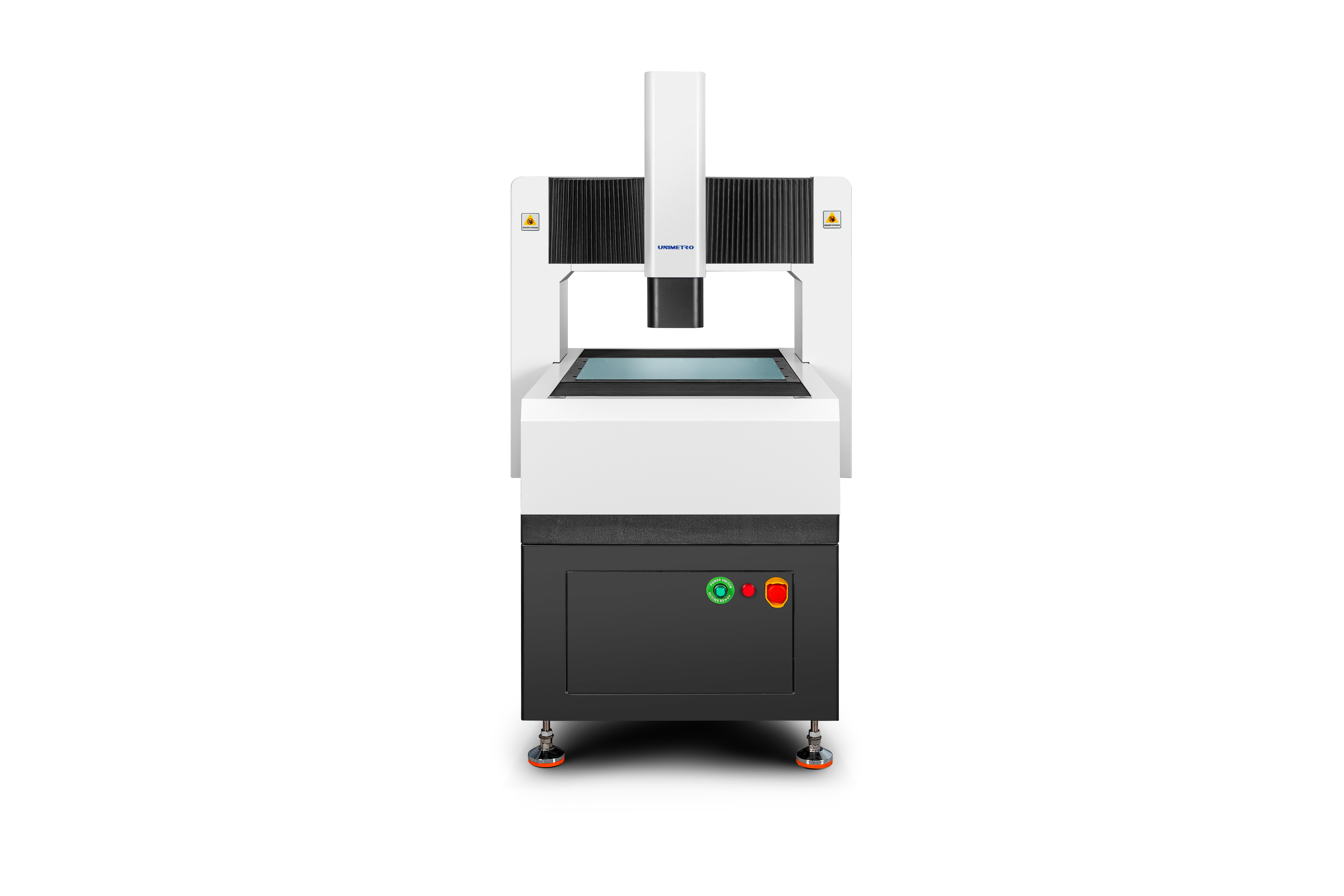

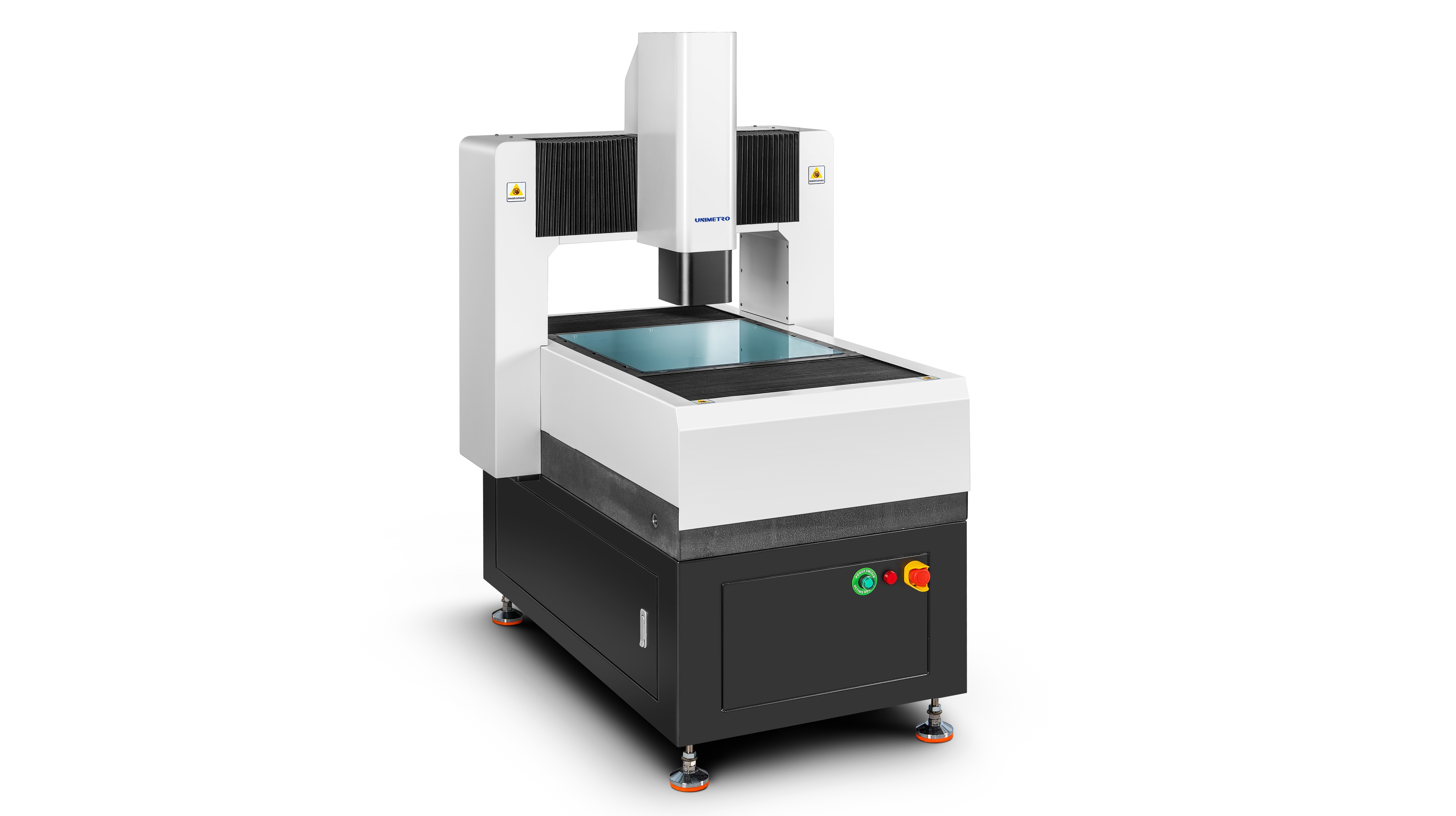

The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.
| Model | HP 442 | HP662 | HP872 |
|---|---|---|---|
| Dimensions (mm) (X × Y × Z) | 920×1200×1600 | 1120×1400×1600 | 1320×1600×1600 |
| Measuring range (mm) (X × Y × Z) | 400×400×200 | 600×600×200 | 800×700×200 |
| Accuracy (μm) | 1.6 +L/200 | 1.6 +L/200 | 1.6 +L/200 |
| Repeatability (μm) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | 560 | 860 | 1600 |
Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.)
Video Magnification: 18~195X (According to the different models of the selected camera; the actual magnification is subject to the measured data)
Work Distance: 85mm
Illumination: Programmable surface light, LED bottom parallel light (optional: coaxial light)
Drive system: CNC control, linear motor drive; Handle control, mouse/keyboard control
Linear scale resolution: 0.1μm
HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
